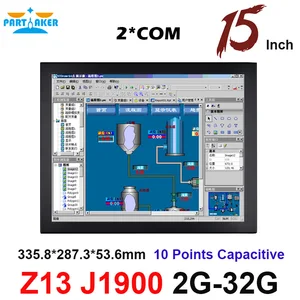

Cheap Partaker Elite Z13 15 Inch 10 Points Capacitive Touch Screen Intel J1900 Quad Core Fanless All In One PC — ptortriat


Cheap Partaker Elite Z13 15 Inch 10 Points Capacitive Touch Screen Intel J1900 Quad Core Fanless All In One PC — ptortriat

US $455.70/ piece
US $455.70
Update :
Vendor :
Prod ID: 32800447042
Posted : 2024-06-28
✄ Check Discount
☑ Detail Product

This limited item from INCTEL Technology Co.,Limited is currently available for purchase. This product Partaker Elite Z13 15 Inch 10 Points Capacitive Touch Screen Intel J1900 Quad Core Fanless All In One PC is in sale for just US $455.70 (update at 2024-06-28). To get more details about this article, click on click detail button above.

Spesification

Memory Capacity: 2GB
Type: All-In-One
Processor Series: Intel Celeron
Processor Model Number: Bay Trail Celeron J1900 Quad Core 2.0Ghz to 2.4Ghz
Port: LAN
Model Number: Elite Z13
Display Type: Touch Screen
Graphics Card Type: Integrated Card
Display Size: 15"
Processor Main Frequency: 2.0
Dispaly Ratio: 4:3
Drive Type: No CD ROM
HDD Rotation Speed: SSD
RAM Type: DDR3
Processor Core: Quad Core
Mouse & Keyboard: No
Brand Name: Partaker
Hard Drive Capacity: 32G SSD
Operating System: Windows&Linux
Display resolution: 1024*768
CPU: Bay Trail-D-Celeron J1900 Quad Core 2.0G
Memory: 2G DDR3(4GB, 8GB DDR3 as optional)
Hard Disk: 32GB SSD(64GB, 128GB SSD as optional)
Display Chipset: integrated intel HD graphics
Audio Chipset: integrated Realtek ALC662
Network Chipset: integrated RTL 8111E
Products Status: Stock
Backlight life: >50000h
Power Supply: 12V 4A~5A
Machine Size: 355.8*287.3*53.6mm
Touch Screen Type: 10 Points Capacitive Touch Screen
Ports: 3*RS232+VGA+LAN+3*USB2.0+1*USB 3.0+DC+Audio In &Out

Model Number:

Partaker Elite Z13

Screen Size:

15 Inch

Opening Hole Size:

334*232mm (Length*Width)

Screen Type:

10 Points Capacitive Touch Screen

CPU:

Bay Trail Celeron J1900 Quad Core 2.0Ghz to 2.4Ghz

OS:

Windows Or Linux

RAM/SSD/HDD:

Maximum 8G RAM, 1* MSATA + 1*2.5 Inch HDD

I/O:

3*USB2.0/1*USB3.0/3*RS232

I/O:

1*VGA/1*RJ45

I/O:

1*DC/MIC-IN&LINE-OUT

Physical Dimension:

355.8*287.3*53.6(mm)

Gross Weight:

6.5 KGS

Model Number:  Partaker Z13 Opening Hole Size:  334*232mm (Length*Width) Screen Type:  10 Points Capacitive Touch Screen CPU:  Intel Celeron Processor J1900 (2M Cache, up to 2.42 GHz) OS:  Windows Or Linux RAM/SSD/HDD:  Max 8G RAM, 1* MSATA + 1*2.5 Inch HDD I/O:  3*RS232+VGA+LAN+3*USB2.0+1 USB 3.0+DC+Audio In &Out I/O:  Optional LPT, Default Without Physical Dimension:  355.8*287.3*53.6(mm) Gross Weight:  6.5 KGS Features:  Resolution 1024*768, Screen Ratio 4:3 Panel Structure:   Panel Size:  15 Inch LED Screen Resolution:  1024*768 Display Brightness:  430cd/m(2) Contrast:  700 : 1 Response Time:  8ms Touch Type:  Using high-quality resistance touch screen click life> 1 million times Usage Environment:   Operating Temperature:  -10℃~60℃ Surface Air Flow Operating Humidity:  10% ~ 95% @ 40 ℃ without condensation Storage Temperature:  -20 ℃ ~ 70 ℃ Installation Method:   1:  Embedded (Recommended) 2:  Wall-mounted 3:  Desktop 4:  Cantilevered 5:  Other Installation Methods Motherboard:   BIOS:  AMI 32Mbit,Support Diskless Start, Wake-Up on Lan, Call Boot (Power On Boot), Watchdog And Other Functions Motherboard:  Fanless Design I/O Interface:   Network:  1* Realtek 8111E 10/100/1000M  Audio:  RealtekALC662 HD Audio Package Information:   Package Size:  44CM(L)*36.2CM(W)*15.5CM(H) Physical Weight:  4KG / 5.1KG(Net/Gross) Power Supply:  Input: 180-240V~1.0A 50-60Hz  Output: 12VDC 4A MAX Power Cord:  Power Cord*1 Touch Pen:  Resistance touch pen*1 (10 capacitive touch screen without touch pen) Buckle:  Embedded Installation Buckle* 1 Set

Opening Hole Size Drawing:

Features:

Resolution 1024*768, Screen Ratio 4:3

Optional WiFi module, support for 802.11b / g / n

Support call on boot, network wake-up

Standard VESA screw hole, can choose the installation method flexibly

Support WinXP, Win7, Win8, Win10, Linux etc….

Panel Structure:

Panel Size

15 Inch LED Screen

Resolution

1024*768

Display Brightness

430cd/m(2)

Contrast

700:01:00

Response Time

8ms

Touch Type

Using capacitive touch screen 10 point touch click life> 50 million times

Motherboard:

BIOS:AMI 32Mbit,Support Diskless Start, Wake-Up on Lan, Call Boot (Power On Boot), Watchdog And Other Functions

Display Mode:Single Display; VGA+LVDS Synchronous / Asynchronous Dual Display

Motherboard:  Fanless Design

I/O Interface:

Network: 1* Realtek 8111E 10/100/1000M Adaptive Network Card Chip

Audio: Realtek®ALC662 HD Audio Decoding Core

Usage Environment

Operating Temperature:

-10℃~60℃ Surface Air Flow

Operating Humidity:

10% ~ 95% @ 40 ℃ without condensation

Storage Temperature:

-20 ℃ ~ 70 ℃

Installation Method:

1. Embedded (Recommended)

2. Wall-mounted

3. Desktop

4. Cantilevered

5. Other Installation Methods
